BENTHOWAVE INSTRUMENT INC. Acoustic Transducer & System
Wide Beam Directional Transducer

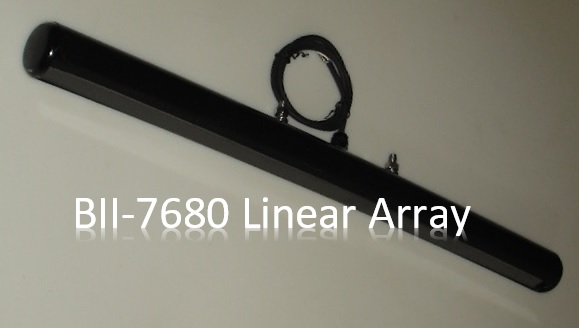

BII-7680 Series Transducer: Wide Beam Directional Transducer: up to 120°x30° View

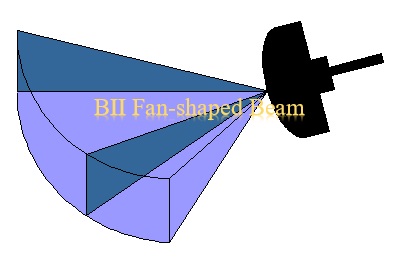

BII's directional transducers provide bespoke beamwidths in
horizontal (Along-length or Along-curve) plane and vertical
(Cross-length, or Cross-curve) plane for directional response to the area
of interest, reject unwanted noises coming from other directions,
and are used for acoustical imaging in biomedical, oceanography, NDT
and material study.

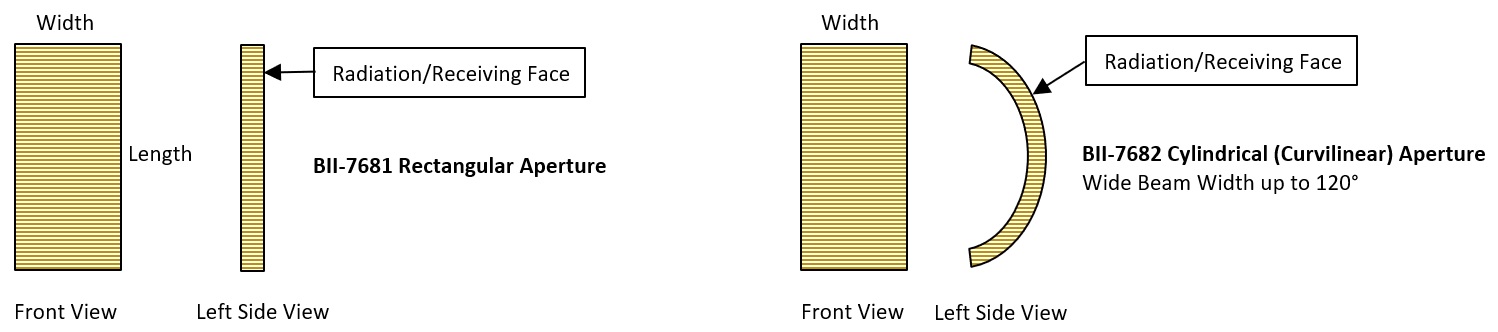

Depending on the specific beamwidth requirements, the aperture is
rectangular (linear) or cylindrical (Curvilinear) face.
| Typical Applications | |
| Acoustical Imaging, Direction-finding Sonar |
Navigation, Obstacle Avoidance,
Acoustic Positioning, |
| Search & Tracking of Acoustic Tag/Pinger/Beacon/Transponder... | Directional Communication, Acoustic Pipeline Leak Detection |
| Related Products | |
| BII-5000 Power Amplifier | BII-8030 Underwater Acoustic Transmitter |
| Sonar Signal Generation Pulse Signal | BII-8080 Transmitting & Receiving System |
Specification
| Document: | Datasheet. |
| Information: | Acoustic Components and System: Installation/Mounting, Ordering, Wiring, Array & Aperture Design and much more. |
