Ultrasonic Power Transducer: High Power, High Qm

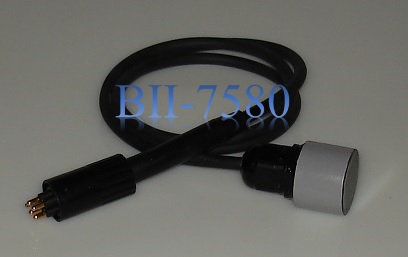

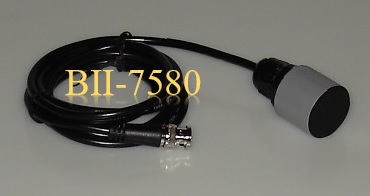

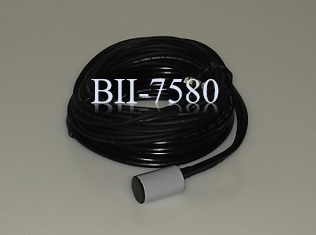

BII-7580 Series Ultrasonic Power Transducer for High Power Ultrasonics

BII-7580 series are designed for ultrasonic power application with continuous-wave and resonance techniques for sonic agitation, processing and NDT (Non-destructive Testing) such as the analysis of macroscopic and microscopic, physical and chemical properties, generation of ‘quartz wind’ and radiation pressure, etc.
Immersion transducers: The transducer is immersed in liquid in a tank or test tube. It is recommended that the temperature of the loading medium is monitored to avoid overheating transducers. Multiple transducers can operate in parallel to cover larger area to be agitated. Following sound fields in processing tank can be achieved: free wave, diffuse, standing wave, pressure and acceleration fields.
Contact transducers: When the transducer is used in air, the couplant (water, gel, grease, oils and commercial couplant) is a must-have material to provide efficient acoustic coupling between the transducer face and the piece under test. Because of the low thermal conductivity of air, the transducer can only be used with low power CW signal or pulsed high power signal.
50 Ω Transducer Load: the transducers are 50 Ω loads to power amplifiers. They are compatible to most commercial RF power amplifiers and to 50Ω coax cablings among equipment.

Typical Applications
Sonic Agitation & Process	Physical, Mechanical, Chemical, Biological and Thermal Effects of Sound Energy
Material Study, Fluids Characterization	Transform from Voltage (Electrical Energy) to Force (Pressure)
