BENTHOWAVE INSTRUMENT INC. Acoustic Transducer & System
Ultrasonic Air Transducer
BII ultrasonic air transducers featuring low to medium Qm in air are for air-coupled NDT (Non-destructive Testing), navigation, ranging, measurement and control, and characterization of airlike fluids (gases) and materials such as woods, plastics, rubber, foam, and composites. Transducers are water-proofed to withstand 50m water depth at least. Sounds generated with Ultrasonic Air Transducer propagate in air or airlike fluids (gases) and materials.
Ultrasonic Air Transducers: Air-Coupled NDT, SONAR, Measurement and Control.
| Typical Applications | |
| Robotics, Proximity Detection, Sound Ranging, Material Study Level Measurement, Speed Measurement, Leak Detection Edge Detection, Web Guiding System, Air-Coupled NDT | Counting, Monitoring, Remote Control, Alarming, Motion
Detection Automatic Sizing, Sorting & Positioning of Parts, Ultrasonic Testing and Analysis Surface/Profile Characterization and Quick Scanning for Quality Control |
| Related Products | |
| BII-5000 Power Amplifier | BII-6000 Impedance Matching for Transducers |
| BII-1000 Preamplifier and Filter | BII-2100 Transmit and Receive Switch with Built-in Preamplifier and Filter |
| BII-8030 Underwater Acoustic Transmitter | BII-8080 Underwater Acoustic Transmitter and Receiver |
Specification

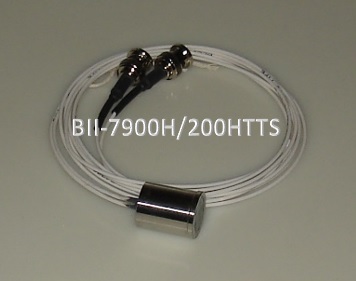

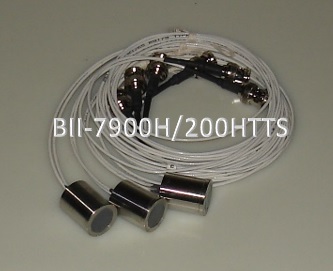

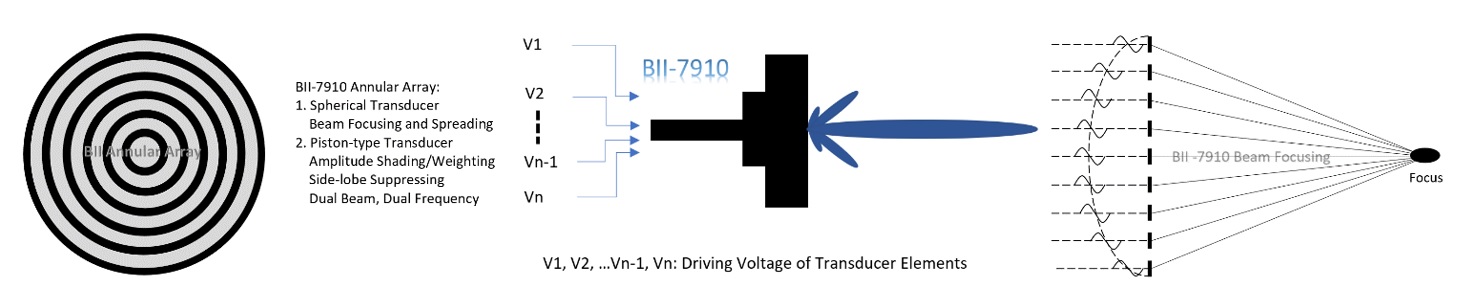

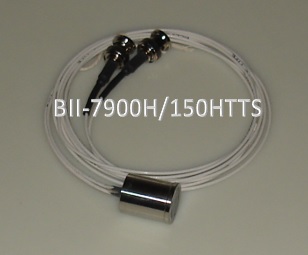

| Ultrasonic Air Transducer: | BII-7900 Datasheet, Planar, up to 140°C (284°F). | BII-7910 Datasheet, Electronic Beam Focusing. |
| Installation: | Transducer Mounting, Cable & Connector for more detailed information. |
| Information: | Acoustic Components and System: Ordering, Wiring, Array & Aperture Design and much more. |
